Knife Gate valve

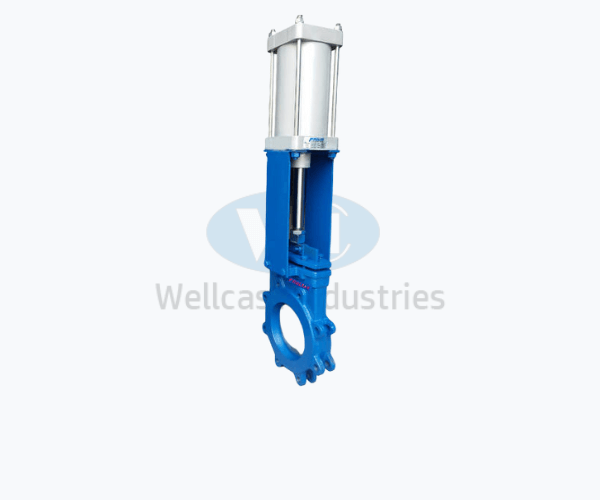

Pneumatic Knife Gate valve
Manual Knife Gate valve

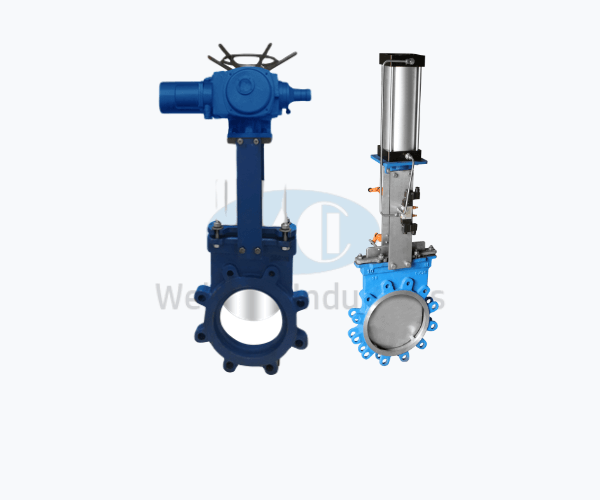

Actuated Knife Gate valve
Full lug Knife Gate valve

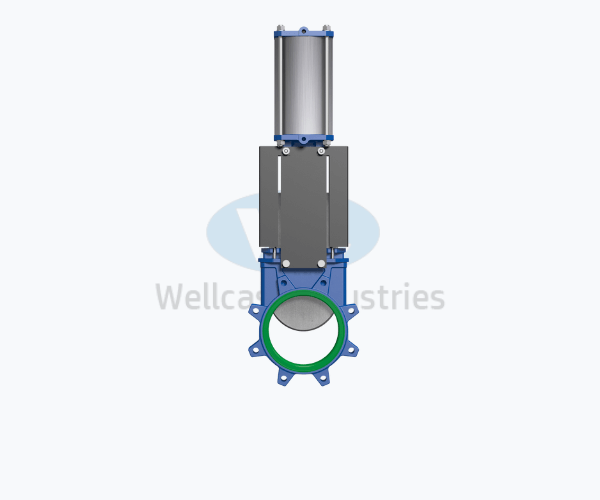

Pneumatic Knife Gate valve
Knife gate valves are designed mainly for on-off and isolation services in systems with high content of suspended solids. Knife gate valves are especially beneficial for handling slurry in addition to viscous, corrosive, and abrasive media.
The valves have a minimized pressure drop in the fully open position, they are easy to actuate, and they have a relatively low weight and are cost-effective.
As the name implies, these valves can cut through thick, porous media that may contain a high concentration of suspended solids (such as dense, sewage sludge) which had caused problems with valves not seating completely and thus leaking.
We offer the following ranges of Knife Gate valves for different industrial applications.
Description:
WELLCAST Knife Edge Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries.
| PART | Material description |
|---|---|
| BODY | CI,WCB,CF8,CF8M,SGI |
| GATE | AISI 304 AISI 316 |
| SEAT | METAL TO METAL (EPDM/VITON/PTFE/NITRIL) |
| PACKING | PTFE IMPREG. SYNTH. FIBRE |
| GLAND FOLLOWER | DUCTILE IRON CF,8,CF8M,WCB |
| STEM | AISI 304 |
| STEM NUT | GUN METAL |
| YOKE | CARBON STEEL |
| SEAT RING | AISI 304 AISI 316 |
| HANDWHEEL | 310:Ductile Iron / >410:Gjl 250(gg25) |
| FASTNERS | ZINC PLATED CARBON STEEL |
Types: Uni-directional, Bi-directional
Size: 2" (50 mm) to 60” (1500mm)
Operation: Manual, Gear Operating, Pneumatic Operated, Chain Operating, Actuator operated
Port type: Two-lug, full lugged, Semi lugged, Flange design, Wafer flangeless
Design standard: MSS SP-81 which applies to metal seated knife gate valves while Resilient seated knife gate valves are not designed under MSS SP-81
Testing standard: As per MSS SP-81
Application: Pulp & paper, Mining, Primary Milling, Ash handling, Chemical plants, Food & beverages, Wastewater treatment, Process pumps
Description:
WELLCAST Knife Edge Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries.
| PART | Material description |
|---|---|
| BODY | CI,WCB,CF8,CF8M,SGI |
| GATE | AISI 304 AISI 316 |
| SEAT | METAL TO METAL (EPDM/VITON/PTFE/NITRIL) |
| PACKING | PTFE IMPREG. SYNTH. FIBRE |
| GLAND FOLLOWER | DUCTILE IRON CF,8,CF8M,WCB |
| STEM | AISI 304 |
| STEM NUT | GUN METAL |
| YOKE | CARBON STEEL |
| SEAT RING | AISI 304 AISI 316 |
| HANDWHEEL | 310:Ductile Iron / >410:Gjl 250(gg25) |
| FASTNERS | ZINC PLATED CARBON STEEL |
Types: Uni-directional, Bi-directional
Size: 2" (50 mm) to 60” (1500mm)
Operation: Manual, Gear Operating, Pneumatic Operated, Chain Operating, Actuator operated
Port type: Two-lug, full lugged, Semi lugged, Flange design, Wafer flangeless
Design standard: MSS SP-81 which applies to metal seated knife gate valves while Resilient seated knife gate valves are not designed under MSS SP-81
Testing standard: As per MSS SP-81
Application: Pulp & paper, Mining, Primary Milling, Ash handling, Chemical plants, Food & beverages, Wastewater treatment, Process pumps
Description:
WELLCAST Knife Edge Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries.
| PART | Material description |
|---|---|
| BODY | CI,WCB,CF8,CF8M,SGI |
| GATE | AISI 304 AISI 316 |
| SEAT | METAL TO METAL (EPDM/VITON/PTFE/NITRIL) |
| PACKING | PTFE IMPREG. SYNTH. FIBRE |
| GLAND FOLLOWER | DUCTILE IRON CF,8,CF8M,WCB |
| STEM | AISI 304 |
| STEM NUT | GUN METAL |
| YOKE | CARBON STEEL |
| SEAT RING | AISI 304 AISI 316 |
| HANDWHEEL | 310:Ductile Iron / >410:Gjl 250(gg25) |
| FASTNERS | ZINC PLATED CARBON STEEL |
Types: Uni-directional, Bi-directional
Size: 2" (50 mm) to 60” (1500mm)
Operation: Manual, Gear Operating, Pneumatic Operated, Chain Operating, Actuator operated
Port type: Two-lug, full lugged, Semi lugged, Flange design, Wafer flangeless
Design standard: MSS SP-81 which applies to metal seated knife gate valves while Resilient seated knife gate valves are not designed under MSS SP-81
Testing standard: As per MSS SP-81
Application: Pulp & paper, Mining, Primary Milling, Ash handling, Chemical plants, Food & beverages, Wastewater treatment, Process pumps
Description:
WELLCAST Knife Edge Gate Valves Is An Uni-directional Lug Type Valve Designed According To MSS-SP-81 For Industrial Service Applications. The Design Of The Body And Seat Assures Non-clogging Shut Off On Suspended Solids In Industries.
| PART | Material description |
|---|---|
| BODY | CI,WCB,CF8,CF8M,SGI |
| GATE | AISI 304 AISI 316 |
| SEAT | METAL TO METAL (EPDM/VITON/PTFE/NITRIL) |
| PACKING | PTFE IMPREG. SYNTH. FIBRE |
| GLAND FOLLOWER | DUCTILE IRON CF,8,CF8M,WCB |
| STEM | AISI 304 |
| STEM NUT | GUN METAL |
| YOKE | CARBON STEEL |
| SEAT RING | AISI 304 AISI 316 |
| HANDWHEEL | 310:Ductile Iron / >410:Gjl 250(gg25) |
| FASTNERS | ZINC PLATED CARBON STEEL |
Types: Uni-directional, Bi-directional
Size: 2" (50 mm) to 60” (1500mm)
Operation: Manual, Gear Operating, Pneumatic Operated, Chain Operating, Actuator operated
Port type: Two-lug, full lugged, Semi lugged, Flange design, Wafer flangeless
Design standard: MSS SP-81 which applies to metal seated knife gate valves while Resilient seated knife gate valves are not designed under MSS SP-81
Testing standard: As per MSS SP-81
Application: Pulp & paper, Mining, Primary Milling, Ash handling, Chemical plants, Food & beverages, Wastewater treatment, Process pumps
Applications
Our valves are having wide variety of applications in various industries as follows:
- Paper & Pulp
- Wastewater
- Slurry media
- Water treatment
- Pharmaceuticals
- Steel & Power
- Energy
- Ports & shipping
- Oil & Gas
- Food and Beverage
- Mining
- Chemical plants
