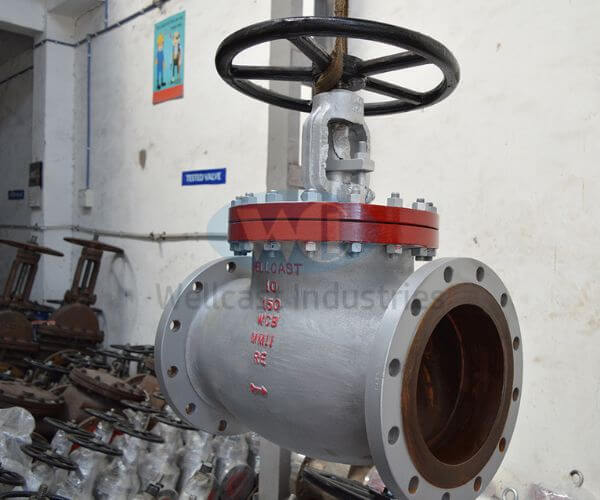

Globe valve
Pressure seal Globe valve
Forged Steel Globe valve
Bolted Bonnet Globe valve

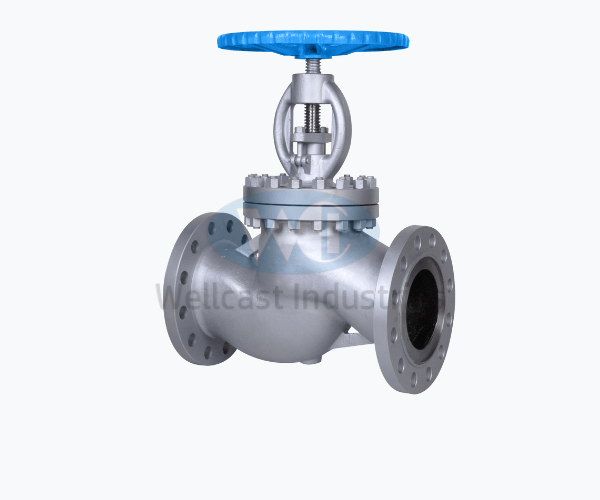

DIN Type Globe valve
All our valve production activities meet the standards set by national and international agencies. Our valve products comparatively have longer functional life and performance consistency.
We offer following ranges of Globe valves for different industrial applications.
Design standard: BS 1873 / ASME B16.34
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5
Size: 15 mm to 1000 mm
Other Features on Request:
- For low temperature and cryogenic services (Cold box and non-cold box applications) extended.
- Locking arrangement
- Gear, Electrical, Hydraulic or Pneumatic actuator available
- Bellow Seal for critical service and hazardous media
- Parabolic, Regulating, Guided & Soft Seating Disc (Plug) available
- Gland Seal Design with Lantern Ring
- 2 Piece bonnet for 12” and above
- Available with Stem Extension
- Mounting Flange as per ISO5211
Design standard: BS 1873 / ASME B16.34
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5
Size: 15 mm to 1000 mm
Other Features on Request:
- Locking arrangement
- Gear, Electrical, Hydraulic or Pneumatic actuator available
- Mounting Flange as per ISO5211
- Regulating, guided and soft seated plugs available
- Ring Type Joints on Request
Design standard: DIN 3230
Pressure rating: PN16, PN40, PN64
End connection: Flange, Lugged
Body material: WCB / CF8 / CF8M / C5
Size: 15 mm to 1000 mm
Other Features on Request:
- 2 Piece Bonnet Design for 12” and above.
- For Low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available.
- Locking arrangement
- Gear, Electrical, Hydraulic or Pneumatic actuator available
- Bellow Seal for critical service and hazardous media
- Parabolic, Regulating, Guided & Soft Disc (Plug) Available
- Gland Seal Design with Lantern Ring
- 2-piece bonnet for 12” and above
- Available with Stem Extension
- Mounting Flange as per ISO5211
Design standard: BS 5352 / API 602 / ASME B16.34
Testing Standards: API 598 / BS EN 12266-1
Pressure rating: 800#, 1500#
End connection: Screwed, Flanged
Body material: ASTM A105 / A182 F316 / F304 / F316L / F304L / A350 LF2
Size: 8 mm to 50 mm
Other Features on Request:
- Extended Bonnet design for low temperature and cryogenic services.
- Available in full bore up to size 40NB.
- Also available in class 900 & 2500.
- Pneumatic Cylinder / Electric Actuator Operated.
- Extended ends on request.
- Locking arrangement.
- Steallite on request.
Applications
Our valves are having wide variety of applications in various industries as follows:
- Air, Water & gas
- Cement plant
- Chemical plant
- Water treatment
- Process plant
- Steel & Power
- Energy
- Lube oil
- Oil & Gas
