Butterfly valve
Pneumatic Butterfly valve

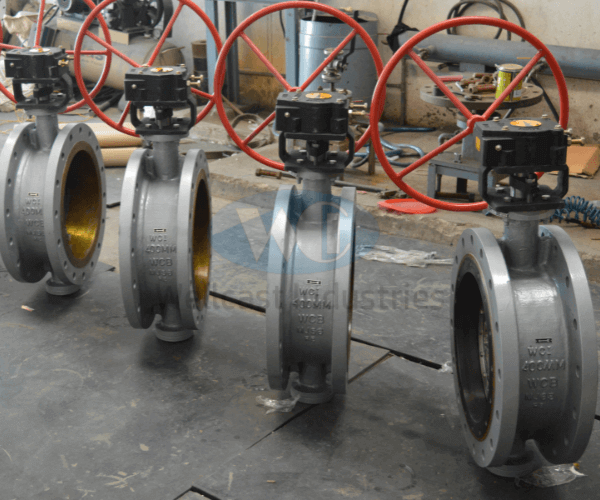

Gear op. Butterfly valve
Actuated Butterfly valve

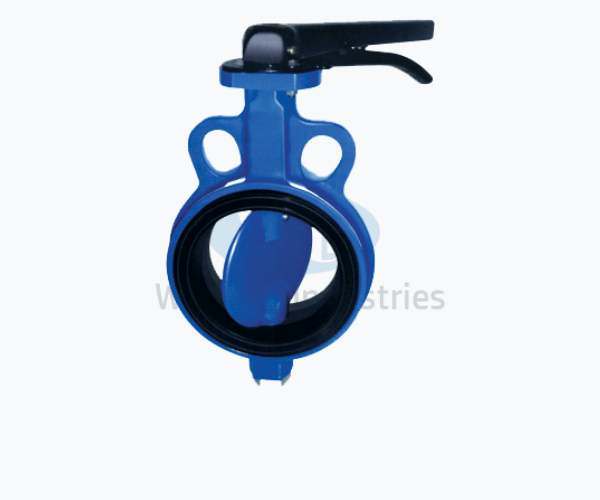

Wafer Butterfly valve
Butterfly valves have a quarter-turn rotational motion that can be used to regulate flow and to halt it. To open & close a butterfly valve is a simple and quick process. The valve can be completely closed or opened by rotating its handle in 90 degrees.
Butterfly valves with a large stem are often equipped with a gearbox, which connects its handwheel to the valve stem via a series of gears. It is one of the most simple & quick when it comes to valve functioning.
All our valve production activities meet the standards set by national and international agencies. Our valve products comparatively have longer functional life and performance consistency.
We offer following ranges of Butterfly valves for different industrial applications.
Design standard:
- BS 5155 / AWWA 504 / BS 6155
- API 609 (DOUBLE FLANGED / LUGGED & WAFER TYPE)
- CATEGORY-A (CONCENTRIC DISC – 2” TO 60”), CLASS 125/150#
- CATEGORY-B (OFFSET SEAT WITH ECCENTRIC OR CONCENTRIC DISC)
- LUGGED & WAFER, CLASS 150/300/600, 3” TO 24”
- DOUBLE FLANGE (LONG PATTERN), CLASS 150/300, 3” TO 36”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 150/300, 3” TO 48”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 600, 3” TO 24”
Testing Standards: BS EN 12266 PART-1 / ANSI FCI 70-2 / API 598
Pressure rating: ASA150 / 300 / 600 / PN6 / PN10 / PN16 / PN25 / PN40
Body material: CAST IRON / DUCTILE IRON / ASTM A216 GR.WCB / Stainless Steel
Size: 40 mm to 1800 mm
Operations: Lever / Gear / Electrical & Pneumatic Actuators
Other Features on Request:
- Various material combinations available.
- Extended stem.
Design standard:
- BS 5155 / AWWA 504 / BS 6155
- API 609 (DOUBLE FLANGED / LUGGED & WAFER TYPE)
- CATEGORY-A (CONCENTRIC DISC – 2” TO 60”), CLASS 125/150#
- CATEGORY-B (OFFSET SEAT WITH ECCENTRIC OR CONCENTRIC DISC)
- LUGGED & WAFER, CLASS 150/300/600, 3” TO 24”
- DOUBLE FLANGE (LONG PATTERN), CLASS 150/300, 3” TO 36”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 150/300, 3” TO 48”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 600, 3” TO 24”
Testing Standards: BS EN 12266 PART-1 / ANSI FCI 70-2 / API 598
Pressure rating: ASA150 / 300 / 600 / PN6 / PN10 / PN16 / PN25 / PN40
Body material: CAST IRON / DUCTILE IRON / ASTM A216 GR.WCB / Stainless Steel
Size: 40 mm to 1800 mm
Operations: Lever / Gear / Electrical & Pneumatic Actuators
Other Features on Request:
- Various material combinations available.
- Extended stem.
Design standard:
- BS 5155 / AWWA 504 / BS 6155
- API 609 (DOUBLE FLANGED / LUGGED & WAFER TYPE)
- CATEGORY-A (CONCENTRIC DISC – 2” TO 60”), CLASS 125/150#
- CATEGORY-B (OFFSET SEAT WITH ECCENTRIC OR CONCENTRIC DISC)
- LUGGED & WAFER, CLASS 150/300/600, 3” TO 24”
- DOUBLE FLANGE (LONG PATTERN), CLASS 150/300, 3” TO 36”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 150/300, 3” TO 48”
- DOUBLE FLANGE (SHORT PATTERN), CLASS 600, 3” TO 24”
Testing Standards: BS EN 12266 PART-1 / ANSI FCI 70-2 / API 598
Pressure rating: ASA150 / 300 / 600 / PN6 / PN10 / PN16 / PN25 / PN40
Body material: CAST IRON / DUCTILE IRON / ASTM A216 GR.WCB / Stainless Steel
Size: 40 mm to 1800 mm
Operations: Lever / Gear / Electrical & Pneumatic Actuators
Other Features on Request:
- Various material combinations available.
- Extended stem.
Body: SG Iron, WCB, CF8, CF8M
Size: 50 mm - 3000 mm
Construction: Fabricated
Shape: Square / Rectangular / Round
Temperature: -30 Deg. C to 1500 Deg. C
Pressure: ± 2 bar
Sealing efficiency: 97% to 99% and 100% with seal air
Media: Flue gas / Hot air / Cold air
Leakage class: 0, I, II, III, IV CAN BE OFFERED AS PER ASME AG-1
End connections: Flanged end / weldable end / wafer end
Application: Oil & Gas industries, Steel industries, Cement industries, Nuclear industries
Applications
Our valves are having wide variety of applications in various industries as follows:
- Cooling water
- Air, water, gas
- Slurry media
- Water treatment
- Pharmaceuticals
- Steel & Power
- Energy
- Steam services
- Oil & Gas
