Ball valve
A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked.
They are characterized by a long service life and provide reliable sealing over the life span, even when the valve is not in use for a long time. As a result, they are more popular as a shut-off valve than for example the gate valve.
All our valve production activities meet the standards set by national and international agencies. Our valve products comparatively have longer functional life and performance consistency.
We offer following ranges of Ball valves for different industrial applications.

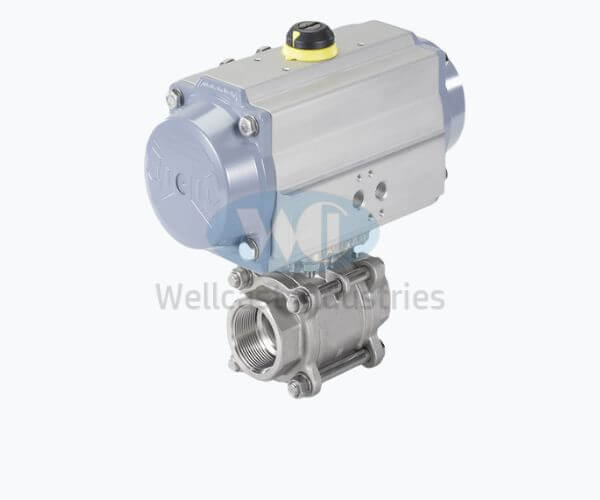

Construction details: Three-piece, Two-piece, One piece, Metal To Metal Seat Floating Ball Valve
Design standard: BS 5351 / ISO 17292
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5
Size: 50 mm to 1000 mm
End Connection: Screwed end, Flange end
Operation: Lever, Actuator (Pneumatic and Electric Motorised)
Other Features on Request:
- Two piece or Three-piece design available as per client specification.
- Metal to metal seated also available.
- Reduced Bore design available on request.
- Anti-Static Device on request.
- Extended stem.
- Actuator operated.
Construction details: Two-piece BODY
Design standard: BS 5351 / ISO 17292
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5
Size: 50 mm to 1000 mm
End Connection: Screwed end, Flange end
Operation: Lever, Actuator (Pneumatic and Electric Motorised)
Other Features on Request:
- Two piece or Three-piece design available as per client specification.
- Reduced Bore design available on request.
- Anti-Static Device on request.
- Extended stem.
- Actuator operated.
Construction details: Forged Ball valve
Design standard: BS 5351 / ISO 17292
Pressure rating: 800#, 1500#
Body material: ASTM A105 / A182 F304 / A182 F316 / F5 / A350 LF2
Size: 15 mm to 50 mm
End Connection: Screwed end, Flange end
Other Features on Request:
- Reduced Bore design available on request.
- Anti-Static Device on request.
- Extended stem.
- Actuator operated.

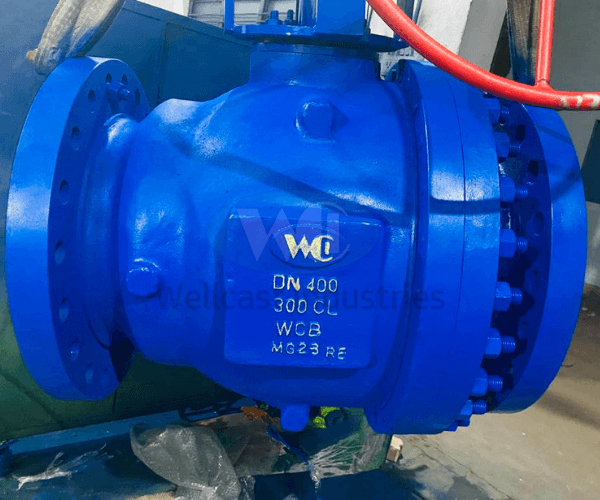

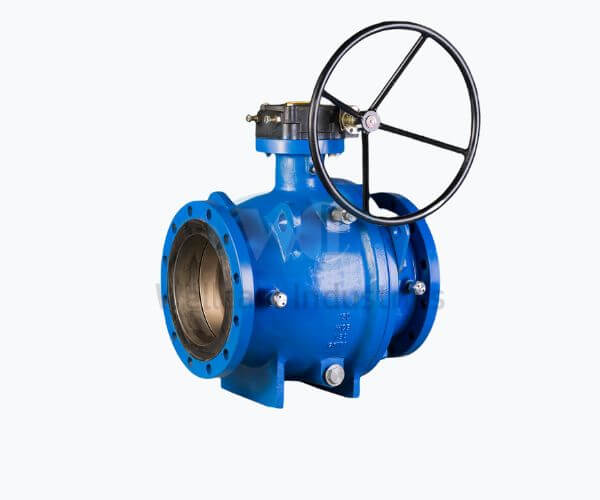

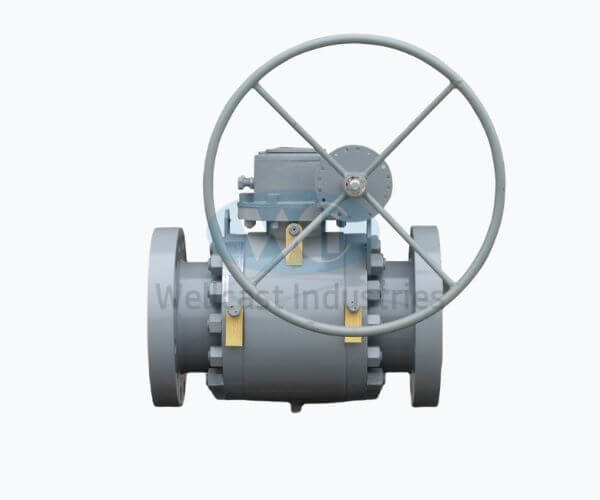

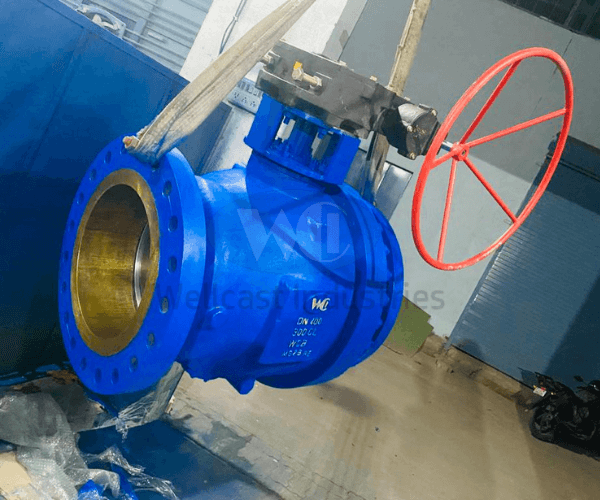

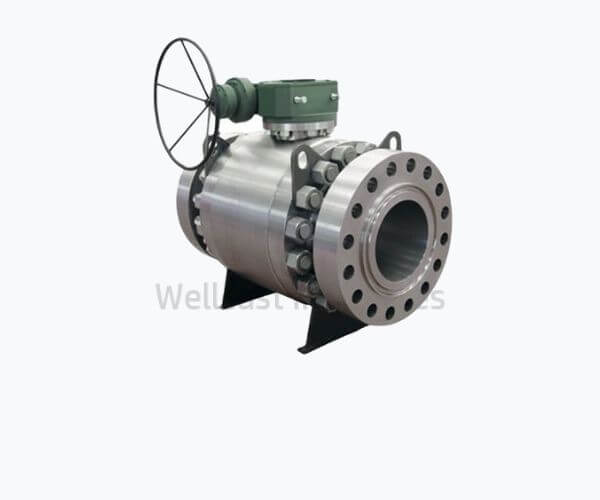

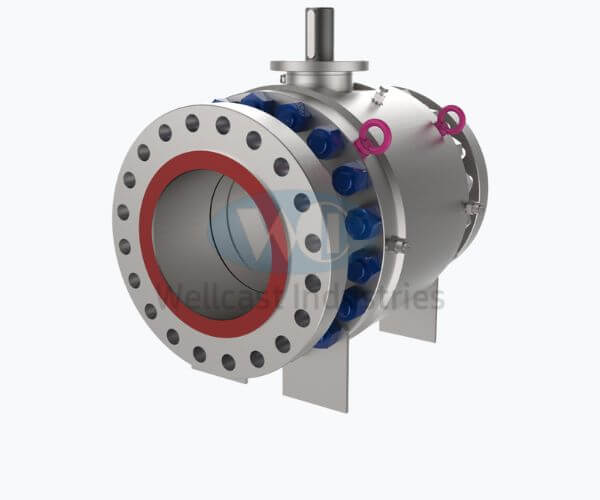

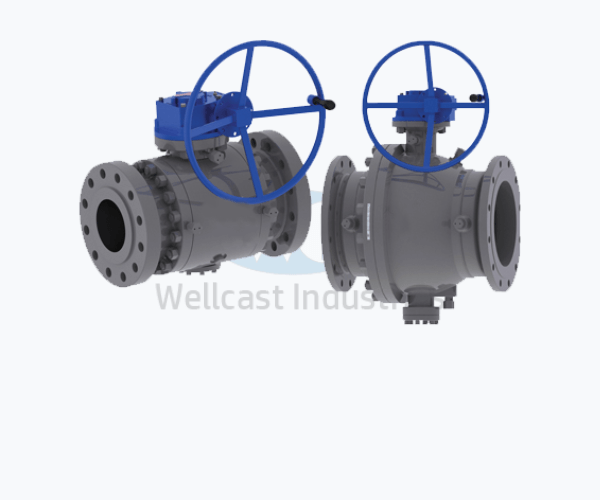

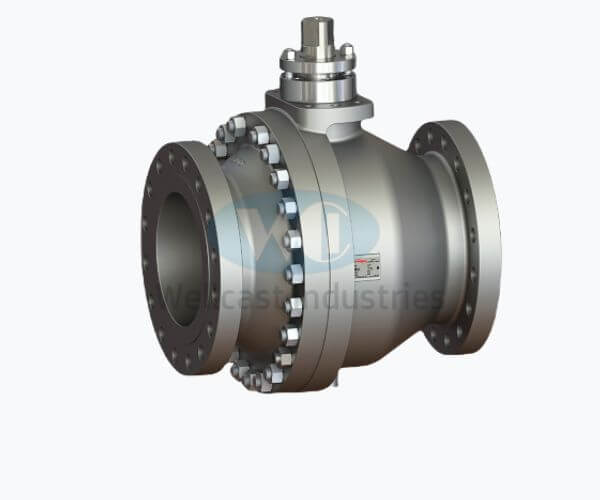

Construction details: 3pc Forged Trunnion mounted, 2pc Cast Trunnion mounted, Welded Body Trunnion Mounted, Metal to Metal Trunnion Mounted, Top Entry Forged Trunnion Mounted
Design standard: BS 5351 / ISO 17292 / API 6D
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5 / ASTM A105
Size: 15 mm to 1000 mm
End Connection: Flange end
Other Features on Request:
- Two piece or Three-piece design available as per client specification.
- Metal to metal seated also available.
- Reduced Bore design available on request.
- Top Entry design and welded body construction also available.
- Anti-Static Device on request.
- Extended Stem.
- Actuator operated.
Design standard: BS 5351 / ISO 17292 / API 6D
Pressure rating: 150# to 2500#
Body material: WCB / CF8 / CF8M / C5
Size: 15 mm to 1000 mm
Other Features on Request:
- Two piece or Three-piece design available as per client specification.
- Metal to metal seated also available.
- Reduced Bore design available on request.
- Top Entry design and welded body construction also available.
- Anti-Static Device on request.
- Extended Stem.
- Actuator operated.
Applications
Our valves are having wide variety of applications in various industries as follows:
- Oil & gas
- Cryogenic Service
- Air, Fuel, gas
- Water treatment
- Pharmaceuticals
- Steel & Power
- Energy
- Ports & shipping
- Oil & Gas
